Creating a virtual machine
The main objective of the Cloud-Bricks
platform is the
creation of virtual servers, editing resources (memory, storage,
CPU, network), and installing the operating system. This manual
shows the procedure for creating a virtual machine.
Create Virtual Machine
Go and click on Virtual Machines in the left menu :
All existing virtual machines are listed below:

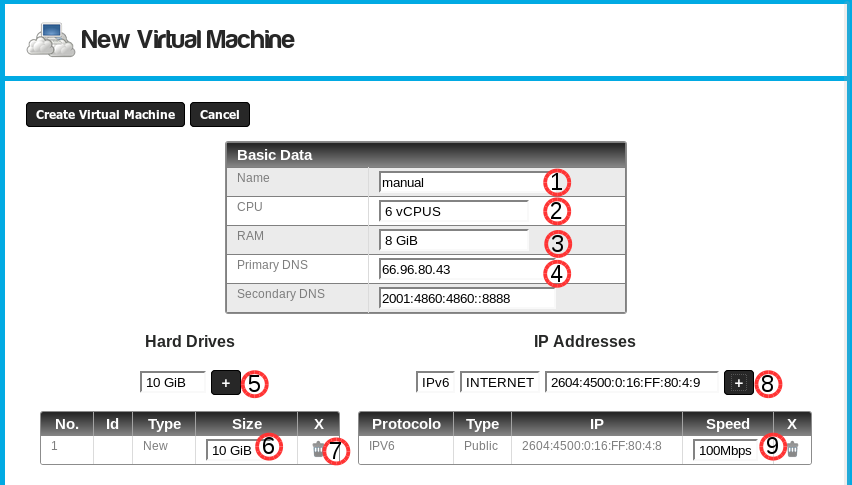

Click on the New virtual machine... button, put here the
basic data for the new virtual machine.
Allocating resources to the new virtual machine
- Virtual machine's name.
- CPU: Assign virtual processors (vCPUs)
- Each Cloud-Brick has 32 physical CPU cores.
- You can assign more vCPUs of physically exist, but this is
not recommended because you may experience performance
- RAM: Assign the amount physical memory to the virtual machine.
- Each Cloud-Brick has 128GB of physical memory available
for your virtual machines.
- DNS: Change the DNS of the machine.
- It is suggested to work with the default DNS
- They should be altered only in specific cases, such as
virtual machines that are part of a Windows domain.
Increase size of disks created.
- A virtual machine requires at least one hard disk.
- Try to keep the size as small as possible disks, so cloning
processes, migration, snapshots, backups, etc. will be faster
- The system supports only increase the size of the disks, is
not possible to reduce.
Erase Disk created. As this is a new virtual machine without
an operating system, erase disks have no risk.
Add network cards.
Change the speed limit of a network card.
Click on the button Create Virtual Machine
Installing the operating system
Already it created the virtual machine and has been allocated the
requested resources. Now the system displays the screen to install the
Swap space or SWAP is a space on the hard disk of the machine,
used to store data processes not remain in physical memory or RAM.
Operating systems automatically manage this disk space according
to the amount of RAM available.
Unix systems use a special partition called SWAP,
Windows systems use a file called pagefile.sys
automatically assigns a swap partition the
virtual machine. When the RAM is less than 4GB SWAP partition will
be the same size as the RAM, otherwise the partition will be 4GB.
